Lifting the engine and gearbox

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

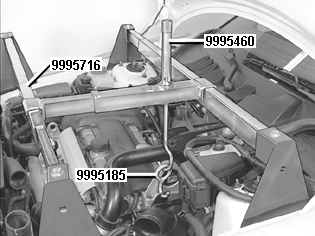

Fig 1: Identifying Lifting Hook, Lifting Beam And Lifting Fork
GLL109299Courtesy of VOLVO CARS OF NORTH AMERICA.

Screw lifting hook 9995460 up so that the engine is hanging horizontally.

Ensure that no cables or hoses are trapped.
