Installing wiring and the quick-release coupling

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

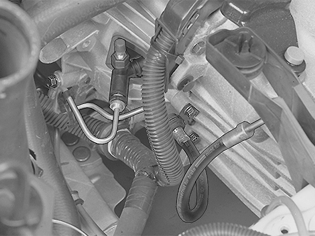

Fig 1: Identifying Clutch Line, Quick-Release Connector, Ground Lead And Clamps For Engine Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the wiring. Clamp the cable harnesses and the ground lead
a new quick-release connector on the clutch cable connection. Lubricate the rubber seal using a drop of brake fluid before joining.

Check that the striker plate is located in the adapter. Then press the clutch cable into place in the adapter so that the striker plate audibly snaps into the groove.

Install the clutch cable in the holder on the side of gearbox.

Remove the hose clips from the hose at the clutch master cylinder.

Bleed the system. Top up the brake fluid if required. Only use Volvo Genuine parts brake fluid.
