Installing the sub-frame

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

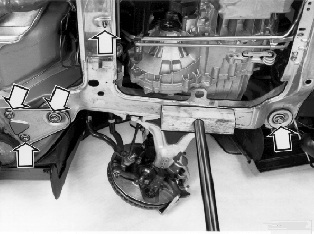

Fig 1: Identifying Screws In Sub-Frame And Support Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Use new screws (4 x M14). Lubricate the screw threads. Ensure that the screws for the steering gear locate in the sub-frame

Start on the left-hand side. Raise the sub-frame using mobile jack 9985972 . Locate the screws for the steering gear in the sub-frame.

Install the screws on the sub-frame and support bracket. Tighten the screws on the left-hand side of the frame first, then those to the right-hand side to 105 Nm + 120° , and then the screws on the frame brackets to 50 Nm . Use a bevel protractor 9512050 .

Move the mobile jack to the right-hand side. Remove the existing screws and repeat the operation.
