Installing the rear engine mounting on the gearbox

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

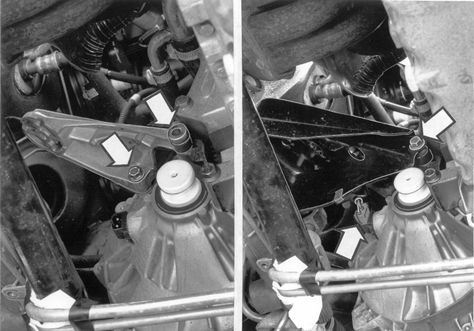

Fig 1: Identifying Mounting On Transmission Screws
GLL109135Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the mounting on the gearbox (3 screws). Tighten the two rear screws to 50 Nm  . Remove the front screw again.

Install the cover. Use the screw for the mounting

Press up the cover against the mounting. Tighten the screw. Tighten to 50 Nm  .
