Installing the gearbox

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

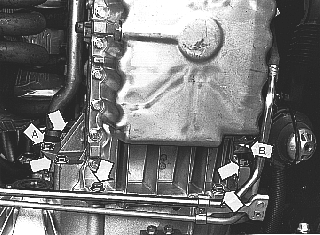

Fig 1: Identifying Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use the gearbox fixture and the mobile jack to line up the gearbox with the engine.

NOTE:

Ensure that the gearbox goes straight in towards the engine without any deviations in the clutch plate center.

Install the 7 screws. Tighten crosswise. Begin with screws A and B which pass through the guide sleeves. Lightly tighten the screws alternately. Check that the gearbox and engine are in contact all the way around.

Then tighten the screws alternately as above. Tighten to 50 Nm .

NOTE:

Correct tightening is vital. Misalignment between the gearbox and engine can cause gearbox noise.

Remove the gearbox fixture and the mobile jack from the gearbox.
