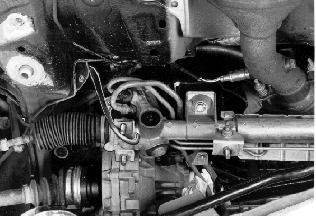

Installing the engine pad using a new nut
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Align the engine pad locating pin in the cover. Install the new nut loosely.
Install the screw in the engine pad and steering gear
Do not tighten the screw.
Remove the load relieving hook 9995045 or the tie strap.
Install the heated oxygen sensor (HO2S) cable on the cover using clamps.
