Installing the ABS sensor

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

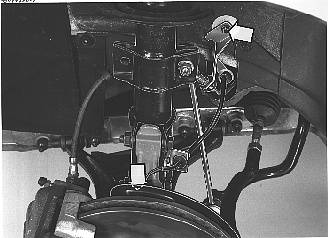

Fig 1: Identifying Bracket For Brake Pipe/ABS Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket for the brake pipe / ABS cable on both sides.

NOTE:

Ensure that the ABS sensor seating is absolutely clean.

Install:

The ABS sensor in the stub axle after first cleaning the sensor using a soft brush. Tighten to 10 Nm
the soundproofing over the drive shaft
the plastic nuts for the wing liner on left-hand side.
