Installing engine compartment components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

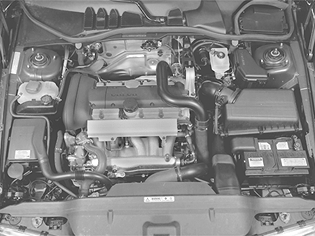

Fig 1: Identifying Battery, Air Cleaner Housing, Timer Valve From Air Cleaner Housing And Battery Shelf

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the expansion tank
the screws securing the bracket for the air cleaner (ACL) housing
the battery shelf
the timer valve to the air cleaner (ACL) housing (turbocharged engines only)
the air cleaner (ACL) housing with the intake manifold and connections
the battery
the hoses to the regulator valve. (Cars with EGR valve only).
