Checking the gearbox

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

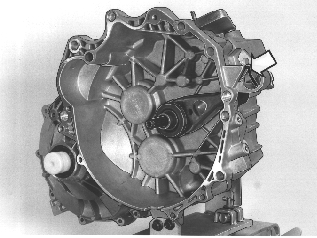

Fig 1: Identifying Gearbox Cover And Guide Sleeves

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that:

the gearbox cover and engine mating surfaces are clean
the guide sleeves on the engine are in place and undamaged.

Apply a light coating of grease in the holes for the guide sleeves (on the gearbox).
