Installing the gear selector assembly: Install:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

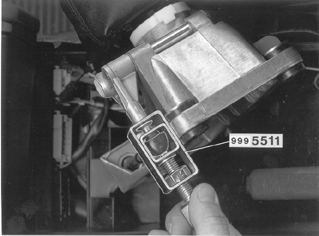

Fig 1: Identifying Tool 9995511

Courtesy of VOLVO CARS OF NORTH AMERICA.

Retaining clips securing the transmission cables in gear selector assembly.
Ball cups to the gear shift links with tool 9995511 .

Install:

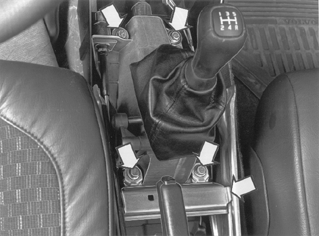

Fig 2: Identifying Gear Selector Assembly Screws And Cross Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Gear selector assembly to body.

NOTE:

On cars from model year -93:

Install cross member on the side reinforcement members.
Install the four screws to the gear selector assembly. Tighten to 25 Nm .
Tighten cross member bolts to 25 Nm .
