Installing the center console components: Install:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

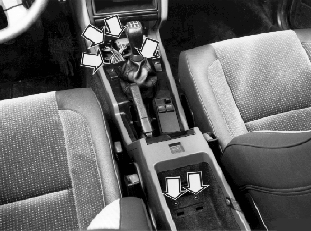

Fig 1: Identifying Screws At Front And Rear Edge Of Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Center console with screws in front and rear edges of console.
Connect connectors. The illustration above shows a car with two connectors.

Install:

Fig 2: Identifying Cigar Lighter Panel/Center Console Locker, Cover Plate Beneath Handbrake Lever And Glove Compartment Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cigar lighter panel/center console locker with two screws in rear edge.
Certain models: Install data link connector (DLC) to panel.
Cover plate beneath handbrake lever
Glove compartment cover
The gear shift lever boot to the center console. First press on the catches at the front edge, the clips on the sides and rear edge.
