Installing transmission cables, bracket and retaining clips

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

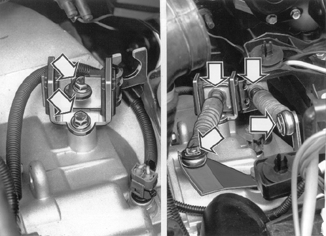

Fig 1: Identifying Cable Bracket Assembly And Transmission Cables To Bracket With Retaining Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

the cable bracket assembly on the transmission and tighten to 25 Nm .
transmission cables to bracket with retaining clips.

NOTE:

The outboard bracket and selector cables are marked in yellow .

Lubricate selector lever lugs with grease P/N 1161241-3.
Transmission cables to shift levers
The two washers and two retaining clips.
