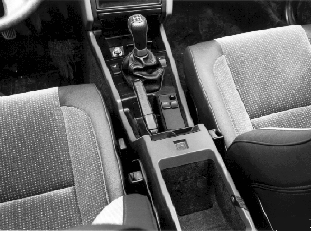

Install gear shift gaiter
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Guide lug on the gaiter ring must align with the guide groove on the shift.
- Press ring down until it meets the lower locking groove
- Secure the gear shift lever gaiter on the center console by first pressing on the catches at the front edge, then the clips on the sides and rear edge.
- Install cover under parking brake lever.
Install gear shift knob.
Guide lug on gear shift knob is aligned on the guide groove on the gear shift lever and pressed down to the locking groove.
