Removing components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

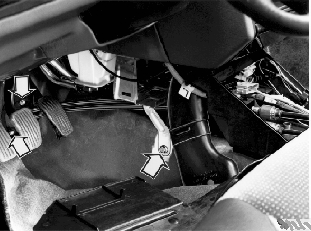

Fig 1: Identifying Panel, Nuts Holding Lead-In And Screw Holding Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Expose the transmission cables grommet in the firewall.

Remove:

the panel, push the mat to one side and release the cable grommet through the firewall.
two nuts holding the lead-in and remove the lead-in from the screws in the bodywork.
the screw holding the bracket to the tunnel (early version).

Pull the air duct apart.
