Removing components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

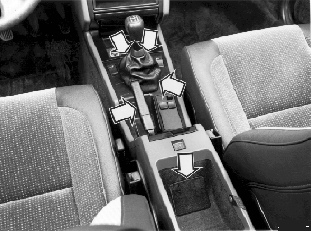

Fig 1: Identifying Cigar Lighter Panel/Center Console Locker, Cover Plate Beneath Handbrake Lever And Glove Compartment Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

cigarette lighter panel/center console locker (two screws in rear edge).
Certain versions: Data link connector (DLC) from panel.
cover plate beneath handbrake lever.
cover in center console locker.

Remove gear shift lever boot from center console.

Press the gear selector lever boot rear snap fastener from underneath, via the hole under the parking brake lever.
