Turbocharged engines only: Remove engine compartment components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

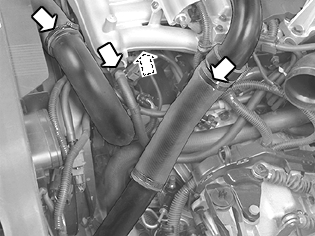

Fig 1: Identifying Alignment Of Hose For Charge Air Pipe & Tightening Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the hose between the pipe from the charge air cooler (CAC) and the outlet pipe from the turbocharger (TC). Tie the pipe to the radiator
the brake vacuum hose from the nipple on the intake manifold and the clamp on the engine
the hose between the throttle body (TB) intake pipe and the charge air cooler (CAC)
slacken off the clamp for the intake pipe at the throttle body (TB) a few turns. Turn the pipe in towards the engine as far as possible. Secure it using a tie strap.
