Installing lifting tools

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

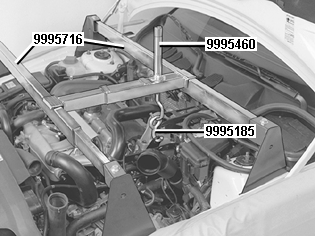

Fig 1: Identifying Lifting Beam 9995716, Lifting Hooks 9995460 & 9995185
GLL126235Courtesy of VOLVO CARS OF NORTH AMERICA.

Install lifting beam 9995716 . Install lifting hooks 9995460 and 9995185 .

Lift the engine to relieve the load on the engine pads.
