Installing and adjusting the gear-shift sensor: Installation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

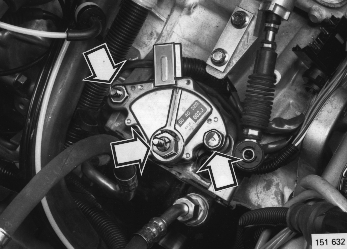

Fig 1: Identifying Gear-Shift Position Sensor Screws, Rubber Washer, Lock Washer & Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the gear-shift sensor.

Tighten the sensor securing screws lightly.

Install the rubber washer, lock washer and the nut on the gear shift linkage rod connection.

Tighten the nut.

Lock the nut with the lock washer.
