Cars with turbocharged engines

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

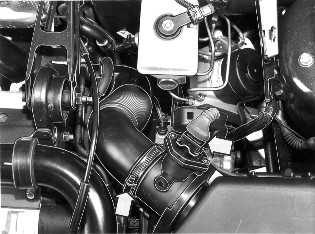

Fig 1: Identifying Mass Air Flow Sensor Connector, Hose Between Air Cleaner & Turbocharger Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off

Remove:

Mass air flow (MAF) sensor connector
Hose between air cleaner (ACL) and turbocharger (TC) unit

Fig 1: Identifying Mass Air Flow Sensor Connector, Hose Between Air Cleaner & Turbocharger Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Air pipe between turbocharger (TC) and air cleaner (ACL). Make sure that all the connections are in place
Mass air flow (MAF) sensor connector
