Assembling connector

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

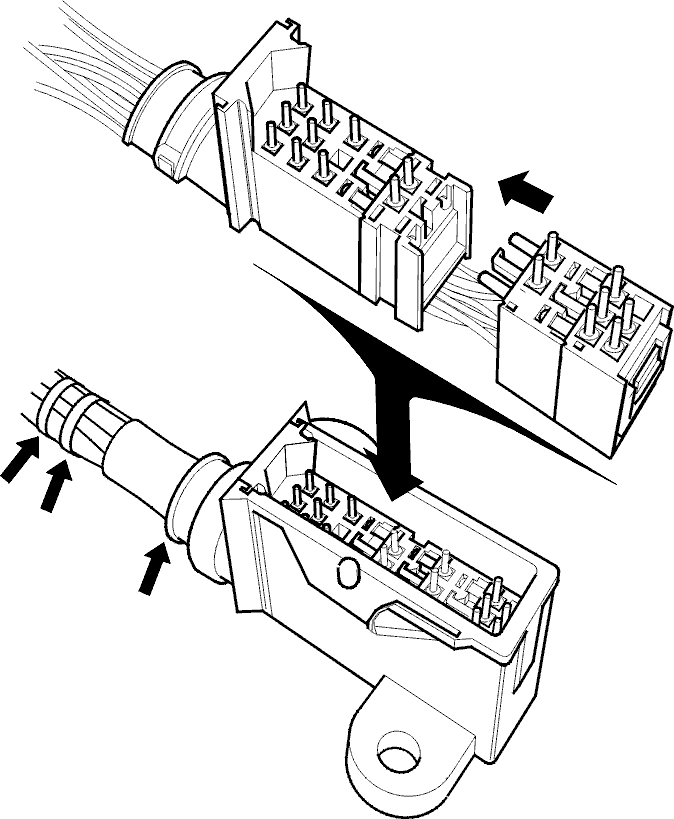

Fig 1: Identifying Assembled Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ensure that rubber seal is in position.

Secure harness and rubber sleeve with cable ties.

Reinstall connector on transmission.

Plug in connector from car.

Note the rubber seal.
