Removing the splash guard under the engine

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

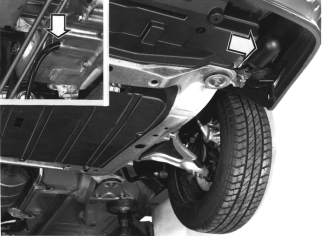

Fig 1: Identifying Carbon Filter Container & Hose From Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drain the oil from the transmission. Reinstall the oil plug with a new seal.

Tighten to:40 Nm .
