Installing the connector on the transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

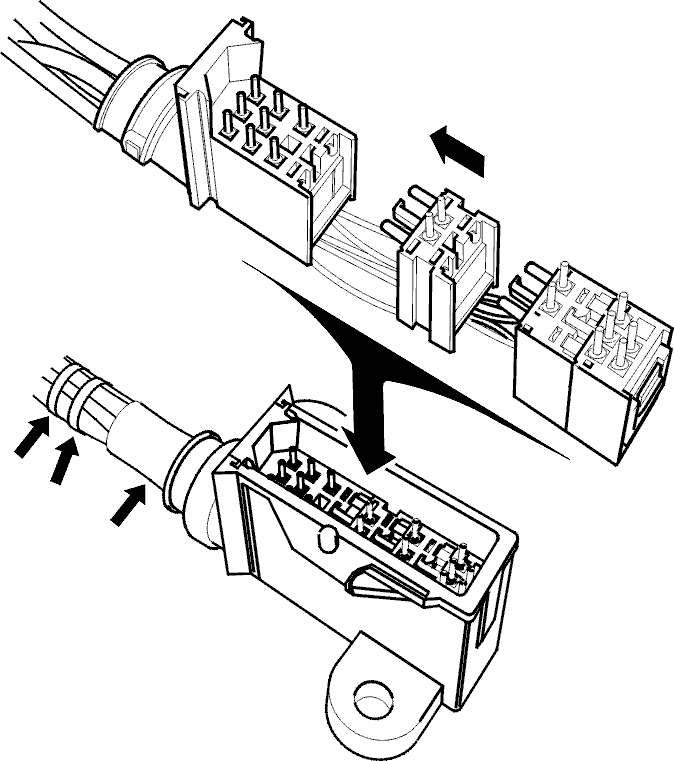

Fig 1: Identifying Connector Assembled

Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble the connector.

Make sure that the rubber seal is in place.

Install the cable clamps around the cable harnesses and the rubber seal.

Install the connector on the transmission.

Connect the connector from the car.

Note the rubber gasket.
