Checking cable harness

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

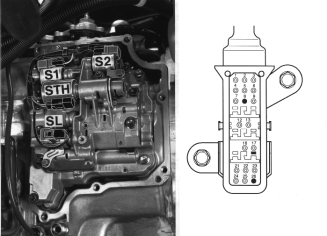

Fig 1: Identifying S1, S2, SL & STH Solenoids

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use an ohmmeter to measure resistance between the transmission connector and the end of the appropriate solenoid cable. Shake harness gently during measurement to locate possible loose connections. The ohmmeter should read 0 Ω .

Terminal	Solenoid	Terminal	Solenoid
21	S1/white	24	STH/brown
22	S2/black	25	STH, ground/blue
23	SL/red

Replace the cable harness if ohmmeter reading is different. See below.
