Inspecting / replacing solenoids: Preparations

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

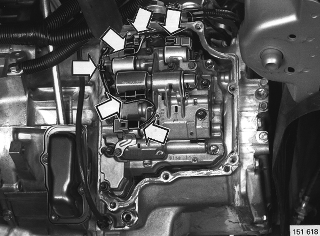

Fig 1: Identifying Solenoid Valve Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The connectors for the solenoid valve

The cable harness from the holders on the control system.

NOTE:

Solenoid S1 and solenoid SL have two types of cable harness. See the following four operations.
