Removing the screws
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Right-hand drive models only:
Lower the sub-frame approximately 100 mm.
Ensure that the five steering gear screws and collision protection screw are clear of the frame.
Remove the screws for the anti-roll bar bearing cap on the left-hand side. Undo the screws on right-hand side until they are held by a short section of thread.

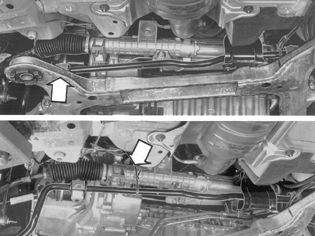

Tie up the anti-roll bar to the steering gear as illustrated above.
