Installing lift tools

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

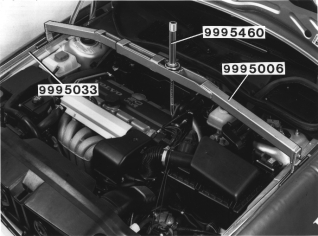

Fig 1: Identifying Lift Supports, Lifting Beam & Lifting Hook
GLL126042Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

The lift supports 9995033 on fender edges.

Lifting beam 9995006 on the supports.

Lifting hook 9995460 in the torque rod bracket. Tighten the lifting hook to relieve the load on the engine mountings.
