Installing the transmission control system
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Install the control system in the transmission.
Locate the arm on the gear selector slide in the hole in the gear selector cam.

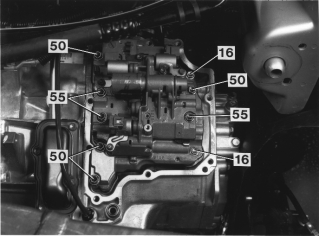

Install the screws. Note that screws are of different lengths (measured in mm).
NOTE:
Tighten the screws alternately. Tighten to:10 Nm .
Install the cover with a new gasket. Tighten to:10 Nm .
