Installing the gear selector and seals

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

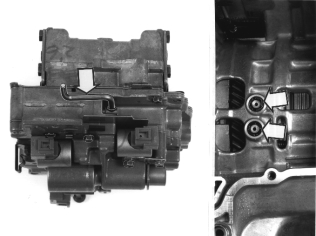

Fig 1: Identifying Gear Selector Slide & New Seals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the gear selector slide in the control system, located as illustrated above.

Install new seals in the transmission.

Use petroleum jelly to hold the seals in position.
