Connecting cable harness
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Connect the cable harness connectors to the solenoids.

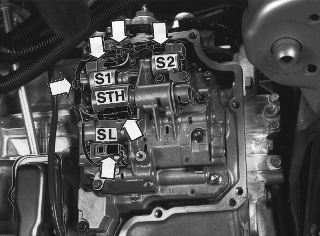

The illustration above shows solenoid SL, S1 and cable harness, early version. See Information, versions and combinations for late versions.
Wiring color codes:
Solenoid S1: white
Solenoid S2: black
Solenoid STH: blue and brown
Solenoid SL: red
Install the cable harness in the holders and check that it is correctly positioned.
