Checking resistance

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

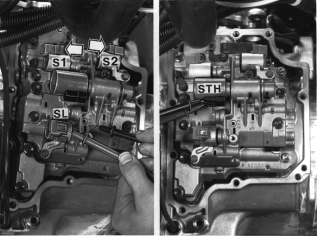

Fig 1: Identifying Solenoids S1, S2 & SL

Courtesy of VOLVO CARS OF NORTH AMERICA.

Solenoids S1, S2, SL:

Measure between the pin in the solenoid connector and the transmission ground terminal.

Correct value: 10-15 Ω.

Solenoid STH:

Measure between the pins in the solenoid connector.

Correct value: 2-6 Ω.
