Installing the torque rod mounting
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

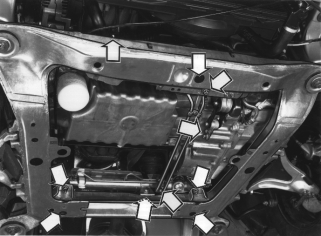

Fig 1: Identifying Steering Gear Nuts, Oil Pipe Bracket Screws, Sub-Frame-Front Engine Mounting Screw & Torque Rod Mounting Screws
Install:
The torque rod mounting on the transmission. Tighten to:35 Nm +40° .
NOTE:
Early version M8 screw, 18 Nm +90°
Use bevel protractor 9512050 .
NOTE:
Use new screws.
- Both the oil pipe brackets. Tighten to:25 Nm .
- The cable conduit on the sub-frame.
