Installing the sub-frame
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Reinstall the sub-frame.
Use new screws (4 x M14). Lubricate the screw threads.
Begin on the left-hand side.
Raise the sub-frame with the mobile jack.
NOTE:
Carefully locate the steering gear screws in the holes in the sub-frame

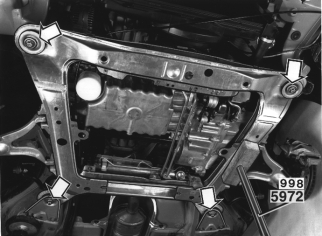

Install the screws for the sub-frame and the support plate. Tighten the sub-frame screws to 105 Nm +120° . Then tighten the sub-frame bracket screws to 50 Nm . Use bevel protractor 9512050 .
Transfer the mobile jack to the right-hand side and repeat the procedure.
