Installing the cover

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

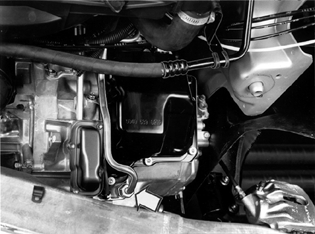

Fig 1: Identifying Oil Pipe & Oil Temperature Sensor Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the control system cover on the transmission.

Tighten the screws (Torx TX40) alternately.

Tighten to:12 Nm .

Stretch the cable up to the oil temperature sensor.

Ensure that cable is correctly positioned. Fold the cable on top of the transmission and secure it with the tie strap.

Install the oil pipe.
