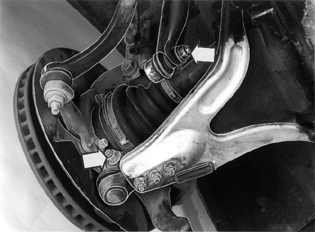

Installing the control arm/ball joint on the stub axle
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Remove the protective socket 9995562 .
NOTE:
Take care that the ball joint boot is not damaged.
Use a new lock nut on bolt. Tighten to:50 Nm .
Reinstall the links on the anti-roll bar.
Use new locknuts. Tighten to:50 Nm .
