Installing hoses and battery

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

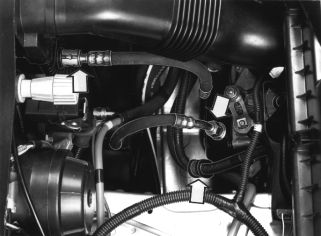

Fig 1: Identifying Control System Cover Return Hose, Cooler Quick-Release Coupling Delivery Hose And Negative Battery Cable Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

The return oil hose on the control system cover.
The inlet hose to the oil cooler quick-release coupling
The clamp for the cable harness/battery cable on the control system cover
The battery shelf
The battery
