Removing front wheels
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

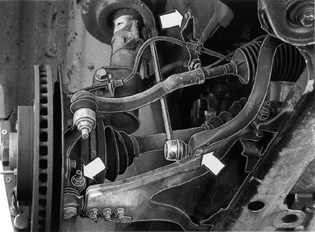

Fig 1: Identifying Bracket For Brake Pipe/ABS Cable, Link From Anti-Roll Bar And Control Arm/Ball Joint From Wheel Spindle
Remove:
- The bracket for the brake pipe and ABS cable. Let the bracket hang fee.
- The link from the anti-roll bar
- Control arm/ball joint from the wheel spindle (both sides). Install the sleeves 9995562 on the ball joints.
