Left-hand side

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

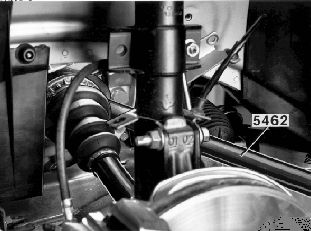

Fig 1: Identifying Jimmy Tool
GLL125642Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the drive shaft from the gearbox.

Use a jimmy tool 9995462 between the gearbox and the inside of the drive shaft joint.

Angle the spring strut out and remove the drive shaft from the gearbox.

Allow the drive shaft end to rest on the sub-frame.
