Installing wheels

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

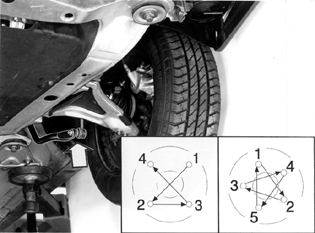

Fig 1: Identifying Wheel Studs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit to the wheels on both sides:

Lubricate the hub's guide for the rims with rust inhibitor 1161030-0. Tighten the screws by hand. Then tighten crosswise. Torque: 110 Nm .

NOTE:

Also see Tightening the wheel studs .
