Installing a new sealing ring

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

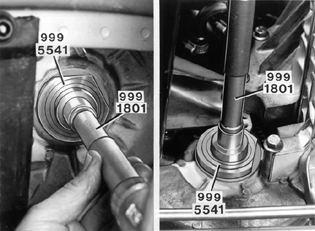

Fig 1: Identifying Drift & Handle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a small amount of grease to the sealing lip.

Use drift 9995541 and handle 9991801 .

NOTE:

Drift in the old design (9995478) must not be used.

Left-hand side:

Place the side of the drift marked AW against the drive shaft seal.

Right-hand side:

Place the side of the drift marked AW against the drive shaft seal., turn as illustrated above in the picture on the right.

Carefully knock in the sealing ring until the drift rests against the gearbox housing.
