Install the accumulator pistons with springs

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

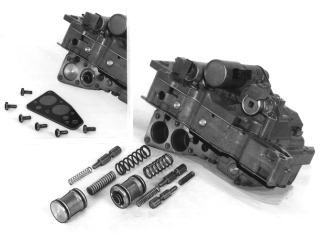

Fig 1: Identifying Accumulator Pistons With Springs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the valves and springs.

Install the cover with gasket.

6 screws. Torque: 6.5 Nm .

CAUTION:

A too large tightening torque can cause setting in the control system resulting in seizing valves.
