Installing the gearbox cable
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Be careful not to damage the cable or its casing by sharp bends. Take care with the cable boot.

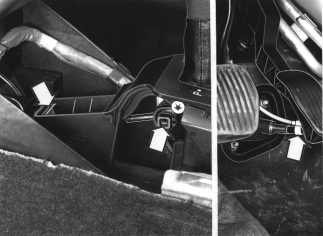

Align the cable in the gear selector assembly.
Install:
- the cable bushing in the bulkhead. Torque 6 Nm .
- cable casing in the gear selector assembly and circlip.
- cable to the selector lever with spindle.
Cars with key lock only: Secure the key lock cable to the gear cable.
Install the side panel.
Fold the carpet back
