Replacing circlip

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

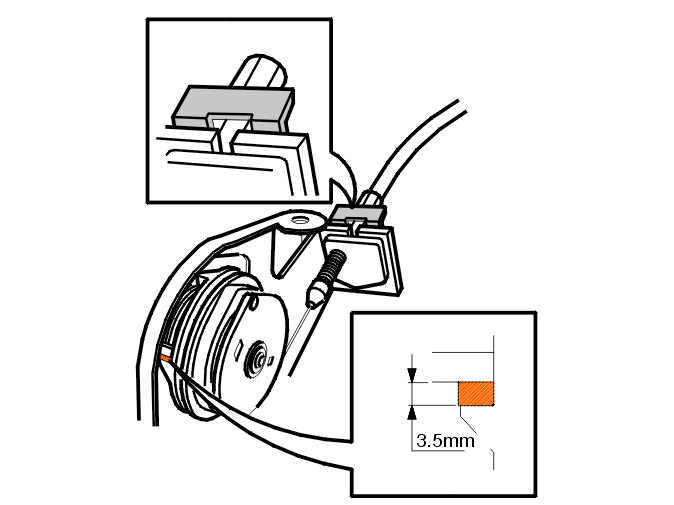

Fig 1: Identifying Circlip On Cable Adjuster, 3.5 MM Spacer And Throttle Control Bobbin

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the connector on the kick-down switch.

Fit the circlip on the cable adjuster.

Make sure the cable is properly routed in the engine compartment.

Hook the cable on the throttle control bobbin.

Place a 3.5 mm spacer between the throttle control bobbin's idling stop and the bracket stop.

Ensure the circlip rests against the bracket. Adjust the cable until it is tensioned slightly.
