Kick-down switch/throttle cable, replacing: Preparations
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

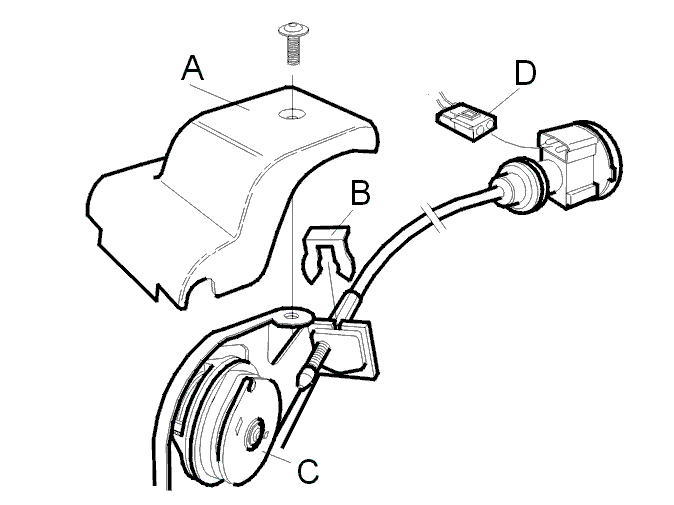

Fig 1: Identifying Cover Over Throttle Control, Circlip On Cable Adjuster, Throttle Control Bobbin And Kick-Down Switch
Remove:
- Cover (A) over the throttle control
- Circlip (B) on the cable adjuster.
- Unhook the cable from the throttle control bobbin (C) and remove from the bracket.
- Kick-down switch (D).
