Combined Instrument Panel Or Connection Plate, Replacement: General

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

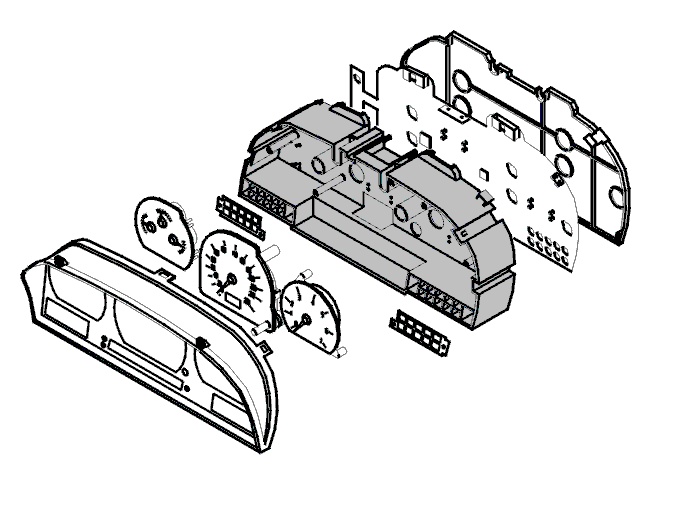

Fig 1: Exploded View Of Combined Instrument Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

First read all information in Diagnostics, see Read And Program Combined Instrument Panel .
Replace the combined instrument panel according to Replacing the Combined Instrument Panel or connection plate according to Replacing Connection Plate .
Replace base plate according to Replacing Base Plate .
Program the connection plate according to Diagnostics, see Read And Program Combined Instrument Panel .

NOTE: It is important to follow the instructions in Diagnostics. Read/program the combined instrument panel.

Read and erase any diagnostic trouble codes.
