Removing engine cooling fan (FC), continued

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

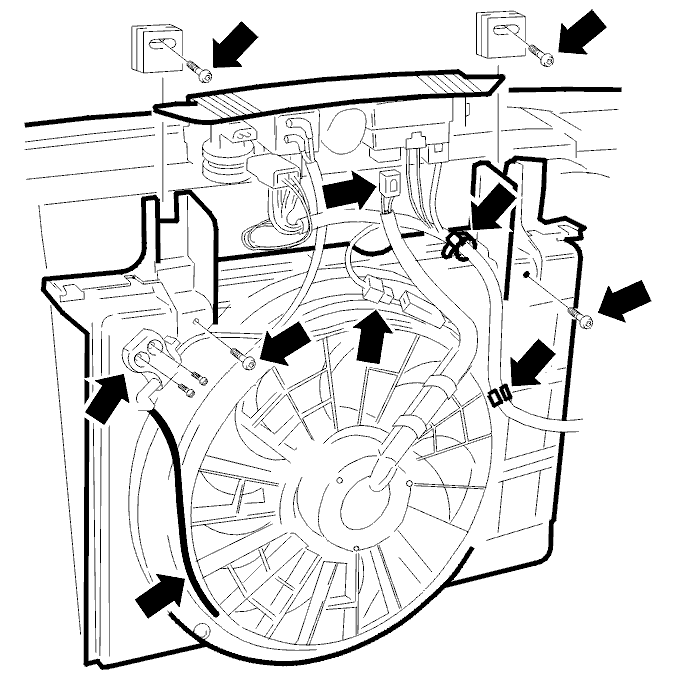

Fig 1: Identifying Cooling Fan Removal/Installation Components (Vehicles With A/C)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove air duct to air cleaner (ACL) housing.

Remove 4 screws holding the fan shroud and relay bracket.

Remove relay bracket and disconnect engine cooling fan (FC) connector from relay.

Remove cover from throttle pulley.

Turbocharged engines: Disconnect charge air hose from charge air cooler (CAC).

Remove cable from 2 clips on cover.

Disconnect vacuum hoses from cover.

Remove vacuum valve from cover.

Disassemble engine cooling fan (FC) connector.

Remove engine cooling fan (FC) with shroud.
