Remove engine cooling fan (FC)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

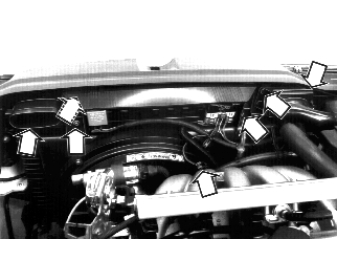

Fig 1: Identifying Cooling Fan Cover, Screws, And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect battery negative lead.

Remove four screws holding engine cooling fan shroud.

Push the shroud slightly to one side, pull up the relay holder and separate the fan connectors.

Remove the air ducts for the control module box and air cleaner (ACL) housing.

Remove fan with shroud.
