Install auxiliaries belt

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

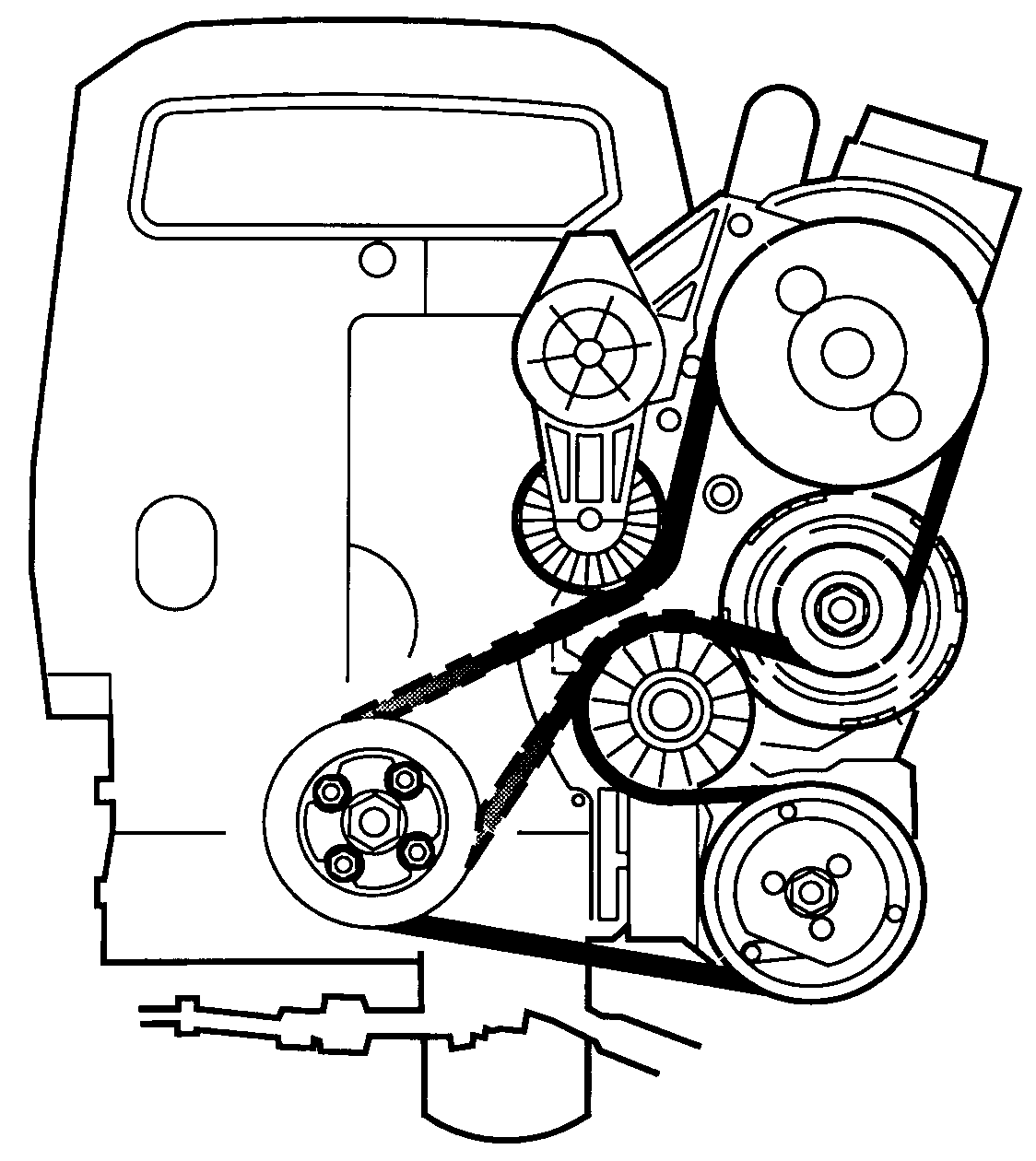

Fig 1: Identifying Auxiliaries Belt Routing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place belt around crankshaft.

Then around air conditioning (A/C) compressor, idler pulley, generator (GEN) and power steering pump.

Turn up belt tensioner and apply belt.

(Scored line displays belt routing without air conditioning (A/C) .)

Test function
