Replacing coolant pump: Remove:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

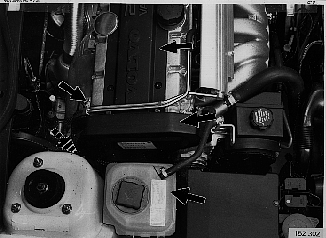

Fig 1: Identifying Expansion Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

spark plugs cover
two fuel lines clamps
lift up expansion tank and place over engine to one side
front timing cover
right front wheel

Remove fender liner fender liner to expose the vibration damper.

Turn the crankshaft so that all the markings correspond.

Remove:

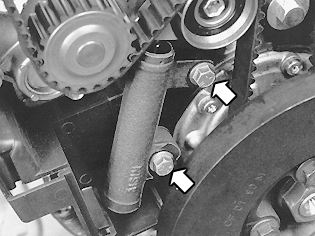

Fig 2: Identifying Upper And Lower Screw Of Tensioner Damping Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

upper timing cover
tensioner damping unit

Remove timing belt and put it to one side.

Compress the tensioner damping unit with tool 9995456 .
