Install coolant pump

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

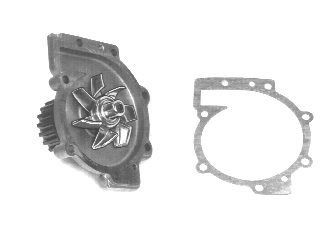

Fig 1: Identifying Coolant Pump And Gasket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a new gasket.

Tighten the screws to 20 Nm (14.75 lb.ft).
