Removing fusible link cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

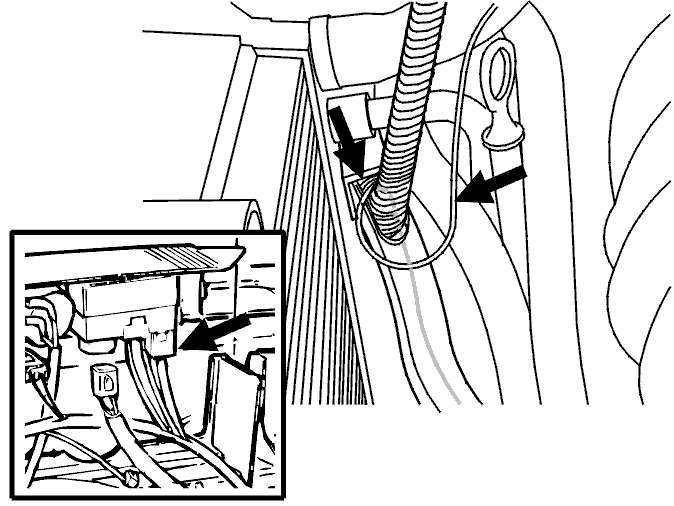

Fig 1: Identifying Fusible Link Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

cable from starter motor.
tie strap by cutting it off.
the red (5 mm ) cable from the corrugated cable sleeve. Cut the cable as close to the cable duct possible.
the damaged cable from the cable duct.
the cable connector from the terminal above the radiator (see small illustration).
